Hand held metal detector Series

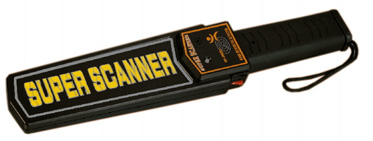

MD-3003b1 HAND-HELD METAL DETECTOR |
|
 |
The MD-3003b1 is a high performance hand held metal detector designed to meet the exact requirements of the security industry. Typical uses will include body search for offensive weapons in crowd control, airport and border security, checking parcels and letters for metal objects and anywhere that hidden metal needs to be detected.
|
| Technical Specifications |
| Power Voltage |
9V(6F22) standard or rechargeable battery |
| Power |
270mW |
| Operate Frequency |
22KHz |
| Operate Current |
< 50mA |
| Operating Voltage |
7V-9V |
| Operating temperature |
-50℃ to +55 ℃ |
| Net Weight |
409g |
| Dimension |
41(L) X 8.5(W) X 4.5(H)cm |
| Indicator |
Visual: Red / Green LED |
| Detecting way |
Speaker or Earphone ;( Earphone not included) , vibration |
| Control |
On/Off Switch; Low sensitivity Switch Sensitivity Adjuster |
Performance
The sensitivity of the detector is determined primarily by the size, shape and composition of the object to be detected. |
| Maximum detection range |
| Object |
low sensitivity |
optimum sensitivity |
| 38 caliber hand gun |
15cm |
20cm |
| Pen knife |
10cm |
15cm |
| Razor blade |
5cm |
10cm |
|

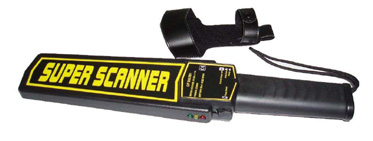

| GP-3003b1Hand Held Highly Sensitive Metal Detector |
|
 |
Application:
1. Electronic detection inspection at airports, railway stations and wharfs.
2. Security inspection of customs, public securities.
3. Quality inspection of medicine and food commercial systems.
4. Security inspection of important sites and playgrounds.
5. Noble metal detection, such as gold or silver jewelry manufacturing plants. |
| Detection distance |
| Pin |
30-60mm |
| 64 model handgun |
150mm |
| 6 inch long knife |
160mm |
| Diameter |
20mm |
| Steel Ball |
90mm |
Features:
1. Highly sensitivity.
2. Simple and convenient to use, no adjustment is required.
3. The detection distance will not be changed when the battery voltage drops from 9V to about 7V.
4. Low power consumption can work for 40 hours continuously.
5. There is automatic and continues alarm when the battery is used up.
6. Switch on/off audio prompt function.
7. With external rechargeable socket hole.
8. Has audio, Light and vibration handoff switch.
Charger voltage: 9V for AC; 10V for DC.(The charger shall be self-provided) |
|

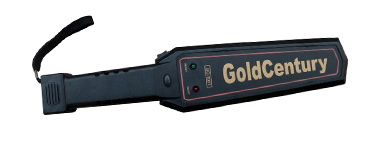

| GC-1001 HAND-HELD METAL DETECTOR GC |
|
 |
GC-1001 is a kind of small Hand-Held Metal Detector, which is a special machine to security inspection. This machine is convenient to use, no adjustable controller, quickly reaction when detecting metals, and sound and light simultaneous alarming. It would sound clearly in low frequency when detecting small metal.
It would sound clearly in high frequency when detecting big metal. |
Function:
1. Easy and convenient to operate
2. The manual part makes anti-smoothy design
3. Two sides both alarm with flashing red light when detecting metal articles.
4. Low battery waste: no waste when stop working, below 1mA when working.
5. Super-high accuracy and sensitivity that be able to detect very small metals (up to 0.1g)
6. The system be able to inspect power source and battery failure, power insufficient.
7. Alarm in different sounds according to different metals, and connect earphone available in harmonious surroundings
Product parameter:
1. Dimension:410mm*85mm
2. Power Source: standard 9v over-lapping battery
3. Alarm mode: Sound-light alarm simultaneously
4. Weight: 500g |
|
| GARRETT SUPER SCANNER(1165180) HAND HELD METAL DETECTOR |
|
 |
| Specifications of Garrett Super Scanner |
| Operating Temperatures |
-35°F (-37°C) to 158°F (70°C) |
| Humidity |
To 95% non-condensing |
| Operating Frequency |
93 kHz |
| Audio Frequency |
2kHz Warble |
| Tuning |
Automatic |
| Indicators |
Speaker |
| LED Alert Lights |
Green: Power ON
Amber: Battery LOW
Red: ALARM condition |
|
Controls Power switch (ON / OFF)
Interference Elimination Momentary Switch
Battery Single 9 volt battery provides up to 60 hours of normal operation. Optional NiMH
Rechargeable battery provides up to 20 hours on each 12-hour recharge.
Dimensions: Width 8.3cm Thickness: 4.13 cm Length: 42cm Weight: 500g
Warranty: Limited,12 months for parts |
|

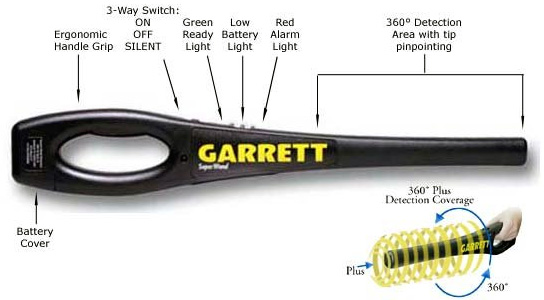

| Super Wand (1165800) hand held metal detector |
|
 |
Key Features of Garrett Super Wand(hand held metal detector)
Optimum Sensitivity: Detects ferrous, non ferrous and stainless steel weapons, Contraband and other metal objects.
Self-calibrating: digital microprocessor technology eliminates the need for Periodic sensitivity adjustments.
Elongated profile provides 9.5'' scan area 360 degree detection converge plus tip pinpointing for easy scanning from head to foot.
Easy and convenient to use with one-touch button and three-color LED lights.
Green LED light indicates ON; Amber LED indicates LOW BATTERY: Red LED Indicates ALARM.
Clear audible or Silent / Vibrate LED alarm signal.
Rugged injection molded construction including structurally isolated coil for Added impact absorption. Exceeds Mil-Std-810F(drop test) Method 516.5. Procedures II and IV.
Ergonomically designed grip fits comfortably in virtually any size hand.
Easy ON/OFF battery cover: standard 9 v battery included. Optional
Rechargeable battery kit available.
Power switch and LEDs positioned for easy access and high visibility.
Warranty: 12 months,
Design features and specifications are subject to change without notice.
Tech Specs
Operating Temperatures: -37 centidegree to 70 centidegree
Humidity: To 95 % non condensing
Operating Frequency : 95 kHz
Audio Frequency: 2 kHz
Tuning: Automatic
Indicators: Silent / Vibrate; Audible Speaker; LED Alert Lights (Green: power
ON); Amber: Battery LOW; Red: ALARM condition)
Controls:3-way switch
On (Speaker/LED light) Off
On (Vibrating/LED Light)
Battery: Single 9 volt battery provides up to 80 hours of normal operation.
.Optional Ni-MH rechargeable battery provides up to 20 hours on each 12 hour
Recharge,
Super wand Dimensions:
Width: 3.25'' (8.3 cm)
Thickness: 1.25 '' (3.2 cm)
Length: 19'' (48.3 cm)
Weight: 18.6 oz (527g) |
| |

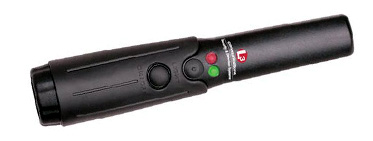

| Garrett THD(1165900) Handheld metal detector |
|
 |
A. Main feature of Garrett THD hand held metal detector (1165900):
1. 360 degree omni-directional detection.
- High sensitivity, without adjustment.
- Can detect all types of metal.
- Vibration/light alarm.
- Top with lighting function.
- Small portable units can be equipped with flexible braided.
B. More detailed feature:
The Garrett THD Tactical hand held metal detector with Holster 1165900 is a
Rugged. Compact hand-held metal detector with 360 degree detection field and silent screening.
The Tactical Hand held detector (THD) by Garrett features a highly sensitive and quick response that effectively detects all types of metallic objects. These objects are indicated by silent alerts with vibration and a red LED. Giving officers the tactical advantage while scanning and retrieving metallic items. The Garrett THD's 360 degree detection area allows for unrestricted scanning angles of the subject, especially in hard- to - scan areas. The Garrett THD Tactical Hand held metal detector also features a bright LED flashlight at the tip of the detector that illuminates an area in lowlight and night applications.
Ultra sensitive response to metal objects
Accurate detection of ferrous, on-ferrous and staginess steel, weapons, Contraband and other metallic objects
Powerful 4-inch length, 360 degree detection area.
Does not require adjustments.
Silent vibrating with Red LED alarm indictor.
Bright LED flashlight for low light and night operation, Useful for scanning IDs and for screening pockets, handbags
Sealed waterproof construction.
High impact case with molded rubber grip. Exceeds Mil-Std-810F (drop test) Method 516.5, procedures 2
Easy ON/OFF battery cover.
9v battery (include) operation.
Ballistic weave holster (Included): mounts easily on belt or in car.
Optional rechargeable battery kit.
Warranty: 12 months,
Operating Temperatures:-37 degree to 70 degree
Water and Dust: Meet IEC 529 IP66 Standards
Operating Frequency: 95khz
Tuning: Automatic
Controls: power switch (on/off). LED flash light (Momentary).
|
| |
|
|
|
|
