Telescope

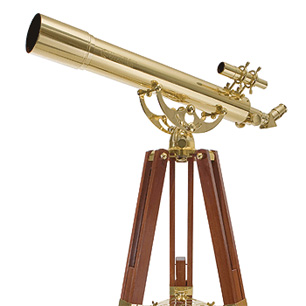

CELESTRON Ambassador 80 AZ Telescope

Ambassador 80 AZ - General Features

• All brass optical tube, altazimuth mount, tripod hardware
• Rigid, sturdy and exquisite mahogany wood tripod
• Brass tripod accessory tray
• Erect Image Viewing through the telescope
• 2 year warranty

Optical Design	Reflector
Aperture	80 mm (3.15 in)
Focal Length	800 mm (31.5 in)
Focal Ratio	10
Eyepiece 1	25 mm (0.98 in)
Magnification 1	32 x
Finderscope	6x30
Optical Coatings	Fully Coated
Weight	28.5 lbs (12.93 kg)

CELESTRON Ambassador 80 AZ Telescope

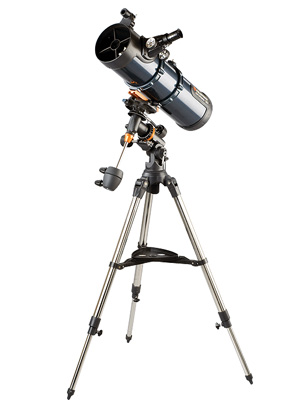

AstroMaster 130EQ - General Features

• Quick and easy no-tool setup
• Permanently mounted StarPointer
• Erect image optics - Ideal for terrestrial and astronomical use
• Quick release dovetail attachment - no tool setup
• German Equatorial mount with Setting circles - to accurately locate and track sky objects
• Rugged pre-assembled tripod with 1.25" steel tube legs - Provides a rigid and stable platform
• All coated glass optics for clear, crisp images
• Deluxe accessory tray for convenient storage of accessories
• "The Sky®" Level 1 planetarium software with 10,000 object database and enhanced images

Optical Design	Reflector
Aperture	130 mm (5.12 in)
Focal Length	650 mm (25.59 in)
Focal Ratio	5
Eyepiece 1	20 mm (0.79 in)
Magnification 1	33 x
Eyepiece 2	10 mm (0.39 in)
Magnification 2	65 x
Mount	CG-3 Equatorial
Optical Coatings	Aluminum
Weight	28 lbs (12.7 kg)
Finderscope	Built-on StarPointer
Tube Attachment	Dovetail Bar
Star Diagonal
Tripod	1.25" steel tube legs
CD ROM	The Sky L1
Highest Useful Magnification	307 x
Limiting Stellar Magnitude	13.1
Resolution (Rayleigh)	1.07 arcsec
Resolution (Dawes)	0.89 arcsec
Light Gathering Power	345 x
Angular Field of View	1.5 °
Linear Field of View (@1000 yds)	79 ft (24.08 m)
Optical Tube Length	24 in (609.6 mm)

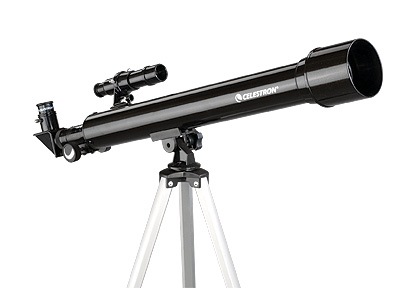

Celestron Power Seeker 50AZ Telescope

Celestron Power Seeker 50AZ - General Features

Quick and easy no-tool setup
Slow motion controls for smooth tracking
Erect image optics - Ideal for terrestrial and astronomical use
Fully coated glass optical components with high transmission coatings for enhanced image brightness and clarity
3x Barlow lens triples the magnifying power of each eyepiece
Accessory tray for convenient storage of accessories
"The Sky®" Level 1 planetarium software with 10,000 object database and enhanced images

Optical Design	Refractor
Aperture	50 mm (1.97 in)
Focal Length	600 mm (23.62 in)
Focal Ratio	12
Eyepiece 1	20 mm (0.79 in)
Magnification 1	30 x
Eyepiece 2	12 mm (0.47 in)
Magnification 2	50 x
Eyepiece 3	4 mm (0.16 in)
Magnification 3	150 x
Barlow Lens	3 x
Finderscope	5x24
Star Diagonal	0.96"
Mount	Altazimuth
Tripod	Aluminum
CD ROM	"The SkyX" Planetarium Software
Weight	6 lbs (2.72 kg)
Limiting Stellar Magnitude	11
Resolution (Rayleigh)	2.79 arcsec
Resolution (Dawes)	2.32 arcsec
Photographic Resolution	167 line/mm
Light Gathering Power	51 x
Angular Field of View	1.4 °
Linear Field of View (@1000 yds)	72 ft (21.95 m)
Optical Coatings	Fully-Coated
Optical Tube Length	24 in (609.6 mm)

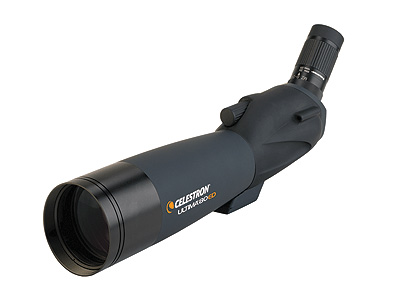

Ultima 80ED - 45°

Ultima 80ED - 45° - General Features

80 mm ED Refractor
Extra-Low dispersion glass provides razor sharp images
Multi-Coated optics
45° viewing angle
20-60x zoom eyepiece
Sight tube for quick targeting
Waterproof
Rubber coated texture for comfortable grip
Soft carrying case
No Fault Warranty

Optical Design	Angular Field of View
Refractor	2° - 1°
Aperture	Linear Field of View (@1000 yds)
80 mm (3.15 in)	105ft @ 20x 53ft @ 60x
Focal Length	Eye Relief
Focal Ratio	Near Focus
6	27ft @ 20x
Finderscope	Optical Coatings
Sighting tube	Multi-Coated
Angle	Tripod Adaptable
45 °	Yes
Eyepiece 1	Camera Adaptable
8-24 Zoom	Built-in T-thread on Eyepiece
Magnification 1	Optical Tube Length
20-60x	16 in (406.4 mm)
Carrying Case	Weight
Soft Case	57 oz (1615.92 g)

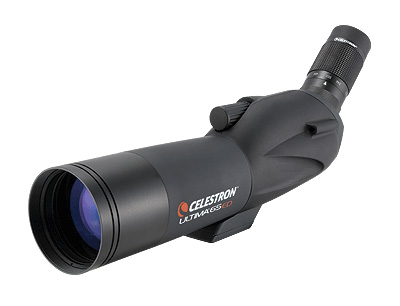

Ultima 65 ED - 45°

Ultima 65 ED - 45° - General Features

Extra Low Dispersion (ED) Glass
Multi-Coated Optics
Bak-4 Prisms
Zoom Eyepiece
Waterproof
Sighting Tube
Soft Carrying Case
No-Fault Lifetime Warranty

Aperture	18@16x
65 mm (2.56 in)	Near Focus
Focal Length	20@16x
386 mm (15.2 in)	Optical Coatings
Magnification	Multi-Coated
16-48 x	Camera Adaptable
Angular Field of View	35mm Camera T-Adapter supplied
2.5°-1.3°	Optical Tube Length
Linear Field of View (@1000 yds)	13 in (330.2 mm)
131@16x, 66@48x	Weight
Eye Relief	2.3 lb (1.04 kg)
